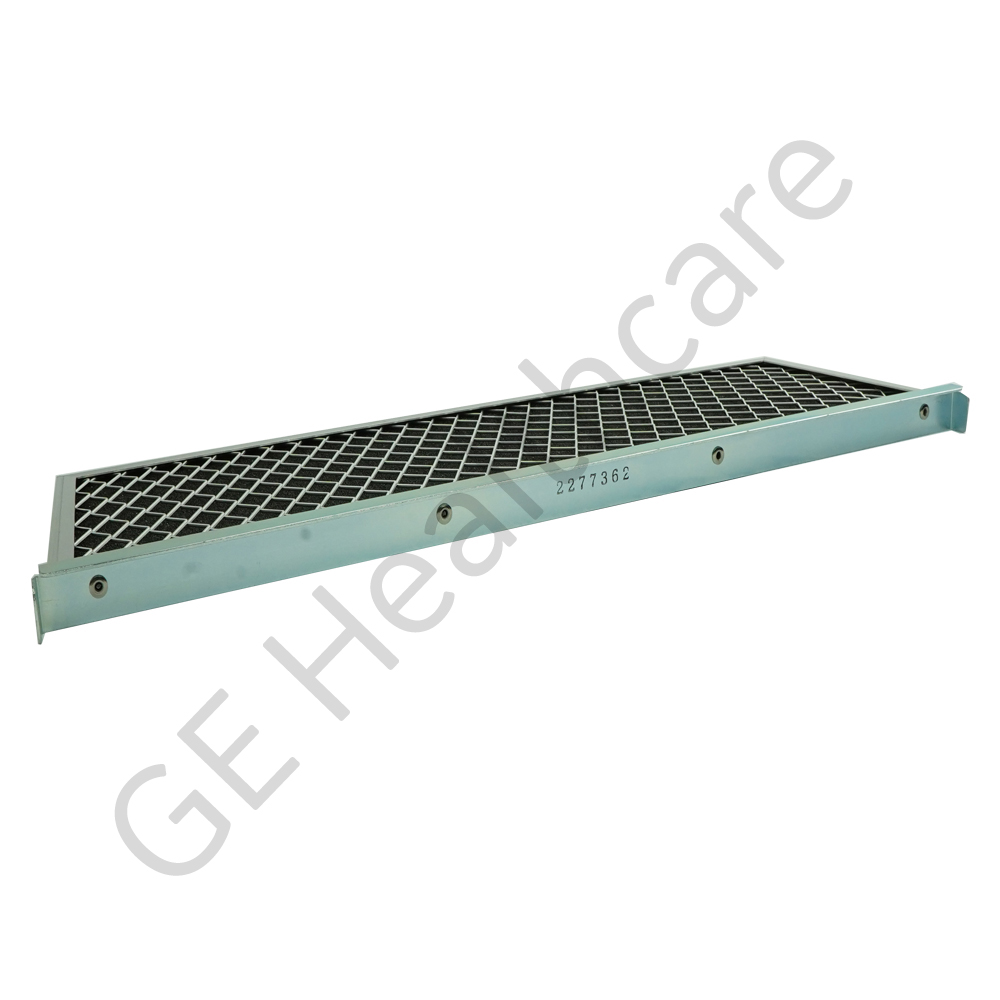

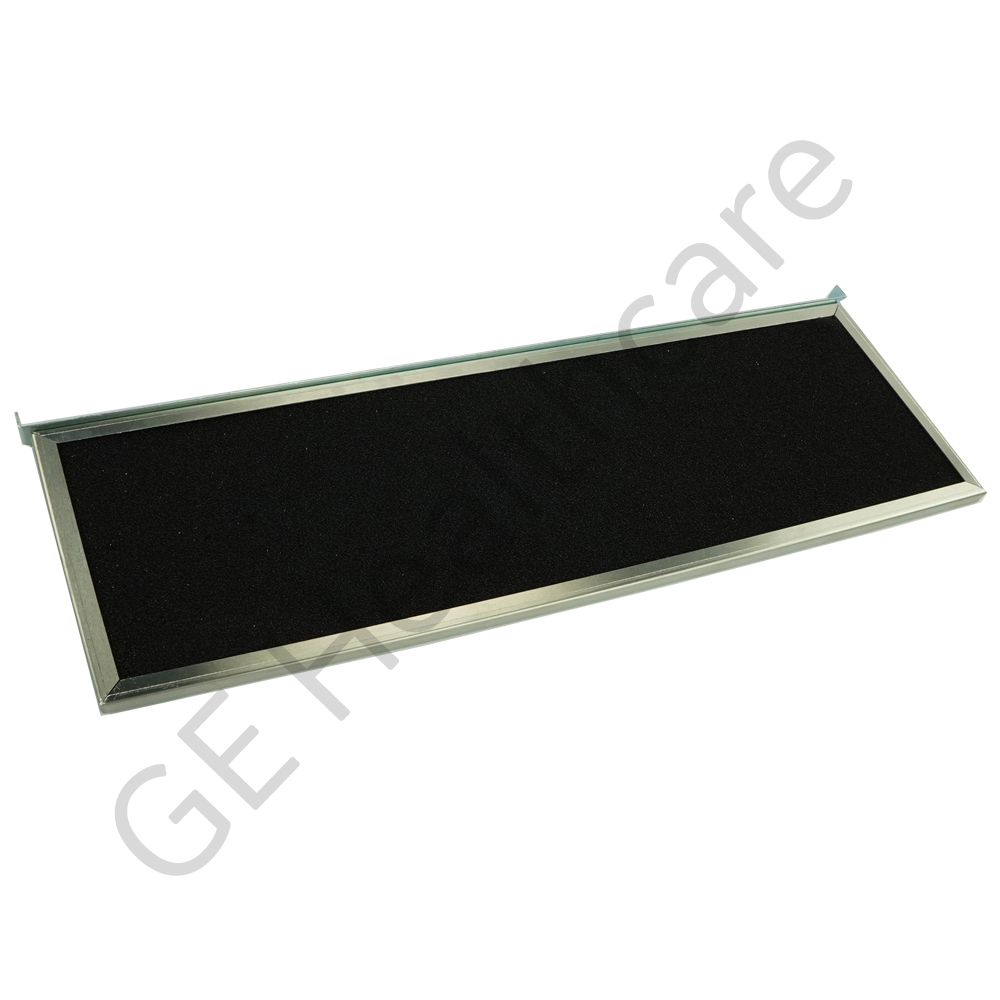

FILTER/FRAME CTR - H3
| 2277362 | |
| PET/CT | |
| Discovery STE (8 Slice) | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- 45 PPI Polyurethane Foam Filter
- Diamond Shaped Mesh
- High Quality Aluminum Frame
- Good Dimensional Stability
제품 개요
The build-up of dust can impact the performance of electronics/electrical assemblies as it causes the components of the assembly to retain heat and makes it more difficult for the internal fans to dissipate heat from the system, thereby decreasing the efficiency of the entire system. This filter frame assembly filter outs the dust, particulate matter, and other solid airborne materials. The high quality, 44 PPI Polyurethane foam of this filter assembly offers high air flow, low pressure drop, good insulating property, high temperature resistance and have low fire retardancy. This foam is encapsulated in a dimensionally stable aluminum channel frame with diamond pattern mesh at the outter side which acts as EMI filter and gives the assembly a pleasant aesthetic appearance. The bottom of this aluminum frame has 4x Ø 3.5 mm holes which is used to attach the steel tab using dome head POP rivets. This steel tab is used for mounting the filter frame in the fan assembly. This filter assembly is used with the Plenum Fan assembly, center fan of DAS duct fan assembly of GE's PET/CT systems.
추가 기능
- Good Corrosion Resistance
- Reliable Performance
- RoHS Compliant
- GSPO
