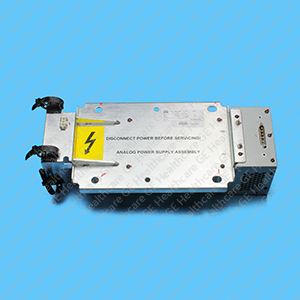

ASTEC Analog PS Assembly
| 5126617 | |
| PET/CT | |
| Discovery STE (8 Slice) | |
| GE HealthCare | 교환 - 반품 결함 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Overload protection on all outputs
- Voltage adjustment on all outputs
- Power factor correction
- Short circuit protected
제품 개요
This is a specially designed low voltage power supply module which converts AC input voltage into DC voltage. The assemby consists of power supply module, mounting bracket, DC bulkhead, shield, panel mount metal gasket, cable clamp, cable, screws and washers with a non-corrosive adhesive. It is a configurable AC-DC power supply with outputs of two +5 VDC. The power supply accepts universal input of 85-264 VAC or 120-350 VDC. This dual output DC power supply is packaged in a mettalic case and maintains very low earth leakage currents, making them suitable for modern medical applications. The power supply is featured with remote sense and remote voltage adjustment on all outputs. The power supply is fully protected against reverse polarity, short circuit, over load and over voltage. This power supply is compatible to be used with GE's Lightspeed Series, Brightspeed Seires and Discovery ST Computed Tomography (CT) Systems.
추가 기능
- Input OK signal and status indicator LED
- Reverse Protection
- Remote sense on all outputs
- GSPO
호환 제품
Lightspeed RT Xtra
Lightspeed RT
Lightspeed Pro 16
Brightspeed Edge
Lightspeed 16
Lightspeed Ultra
Brightspeed Excel
Brightspeed Elite
Lightspeed Plus
Lightspeed QXi
Discovery ST (4 Slice)
Discovery ST (8 Slice)
Discovery ST (16 Slice)
Discovery STE (8 Slice)
Discovery STE (16 Slice)
