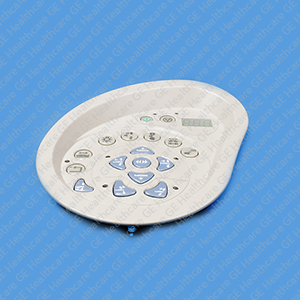

Left CT Control Panel - Mist Gray Bezel with Green LEDs
| 5139590 | |
| 2256729 2330695 | |
| Computed Tomography (CT) | |
| Lightspeed 16 | |
| GE HealthCare | 교환 - 반품 결함 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Corrosion resistant
- Toxic materials to be avoided
- Seventeen switches without illumination
- Seven LED indicators
제품 개요
The Left CT Control Panel Mist Gray Bezel with Green LEDs is used in Gantry User Interface (GUIF) System, which is part of the Computed Tomography (CT) system. The operator switch control panels will be located on the left and right side of the CT gantry. The functionality of each will be the same with one being a mirror image in layout to the other. Communication to the operator switch control panels will be via a Controller Area Network (CAN). The control panel will provide two basic functions. It will accept input from the user through pressing a button and relay that information to the system through CAN communications. The control panel will also provide information to the user through the use of three seven-segment displays and seven indicating LEDs. The control panel switches are defined by shape, location, grouping and logo symbol. The surface of the switch is a high quality appearance over its entire useful life and it is cleanable with normal hospital solutions. It is also to be protected from cleaning solution penetration and minimize entrapment of pathogens.
추가 기능
- Three digit readout using seven-segment blue color LEDs ½†high
- Switches are defined by shape location grouping and logo
- The switch surface shall present a high quality appearance over its entire useful life
- Cleanable with normal hospital solutions
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 2256729 | Control Assembly Left H2 Gantry |
| 2330695 |
